Heat Shrink Tube Series
Product Introduction

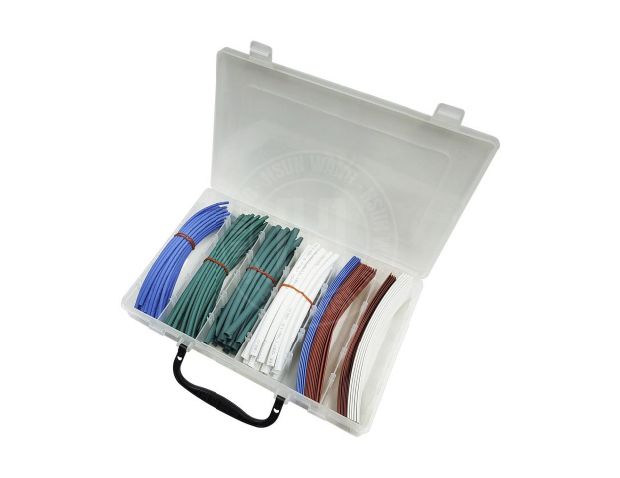

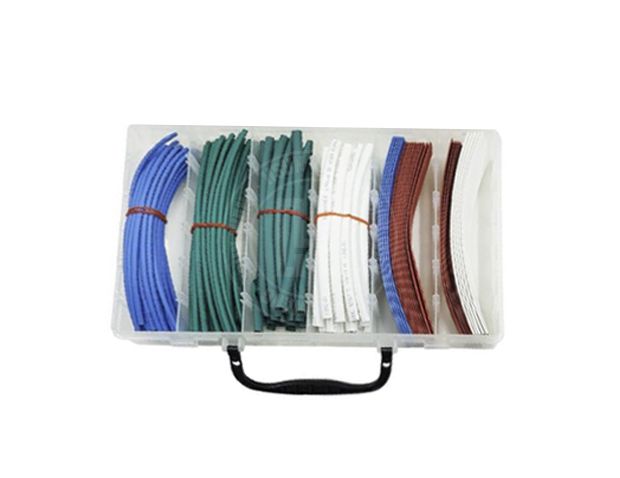

Item No:S00158HC 158PCE Colorful Heat Shrink Tube Set
- Heat Shrink Tube-Φ2.5*170mm-Blue
- Heat Shrink Tube-Φ3.0*170mm-Green
- Heat Shrink Tube-Φ5.0*150mm-Green
- Heat Shrink Tube-Φ6.0*150mm-White
- Heat Shrink Tube-Φ16*170mm-Blue
- Heat Shrink Tube-Φ10*170mm-Red
- Heat Shrink Tube-Φ12*170mm-Red
- Heat Shrink Tube-Φ20*170mm-White
Heat shrink tubing, also known as heat shrink, is a shrinkable tube that shrinks radially when exposed to heat. Produced using a two-step process, heat shrink is available in a wide range of materials to suit almost any application. Heat shrink tubing has many useful applications, including to provide electrical insulation to wires, connections, joints, terminals, and splices, as well as bundling loose items such as wires and as a protective covering.
Heat Shrink Tube:
Material: Polyolefin
- Operating Temperature: -55°C~ +125°C
- Shrink Temperature: Start at 70°C ; Shrunk totally at 125°C
- Shrink Ratio: 2:1
- Maximum Electrical Rating: 600 Volts
Features:
- Protection and insulation of components and wires.
- Color coordination and sizes.
- Protection against water and moisture ingress preventing corrosion.
- Quickly & simply shrink by heat gun.
More LiCrim Crimper information : Please Press the button "Download" to get it.
Packing List : 20/CTN/9.2/10.2/KGS/2'
PP Box & Label
PP Box Size : 27.3 x 22.5 x 4.4 cm (Include Hanger)
Unit Weight : 462.2g
For more information please contact us.
