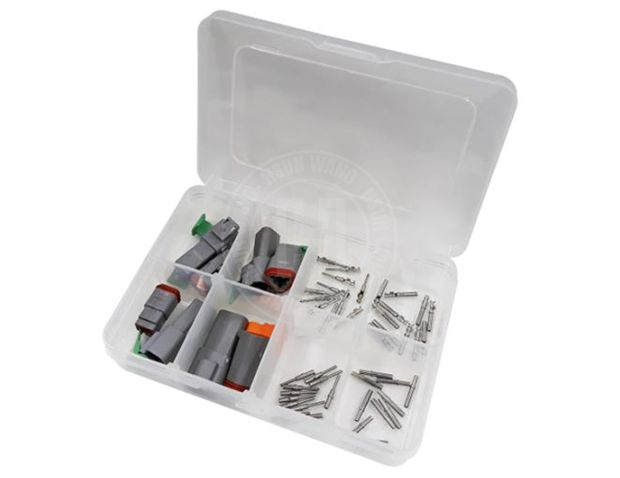

Item No: E4252KC 52pc Deutsch DT Connector Kit
- Stamped & Formed Pin Contact
- Stamped & Formed Socket Contact
- Solid Pin Contact
- Solid Socket Contact
- Receptacle Connector(Incl. Wedgelock)
- Plug Connector(Incl. Wedgelock)
Made in TAIWAN-More LiCrim Crimper Function : Please Press the button "Download" to get it.
Deutsch DT Series Connectors by TE Connectivity
Rugged, Sealed Electrical Connectors for Harsh Environments
The Deutsch DT Series connectors, engineered by TE Connectivity, are industry-leading sealed wire connectors designed to deliver reliable electrical performance in harsh and demanding conditions. Ideal for automotive, agricultural, marine, and off-highway applications, these IP68-rated connectors offer exceptional durability, sealing, and vibration resistance.
Key Features of DT Series Rugged Connectors
- High-Performance Thermoplastic Housing
Constructed with durable thermoplastic material, these rugged electrical connectors are resistant to UV exposure, making them suitable for outdoor and high-vibration environments.
- Superior Environmental Sealing
Outfitted with silicone wire and interface seals, the DT Series achieves IP68-rated protection against water, dust, and contaminants, making them ideal sealed connectors for challenging conditions.
- Versatile Contact and Cavity Options

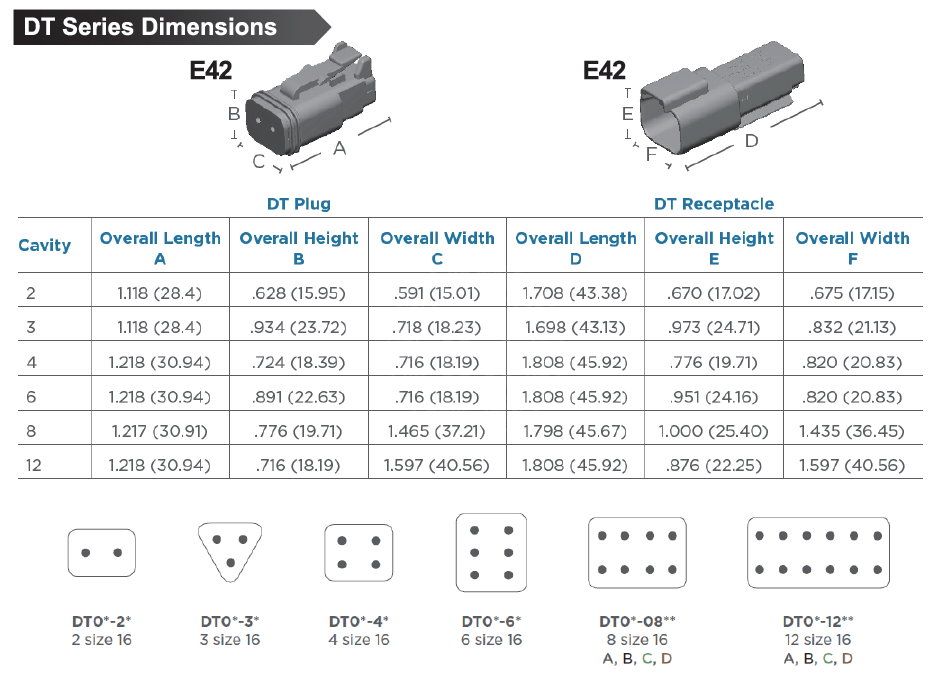

Available in 2, 3, 4, 6, 8, and 12-pin configurations, the connectors support size 16 contacts and wire sizes ranging from 14 to 20 AWG, delivering up to 13 amps of current—ideal for a wide range of vehicle and equipment wiring systems.
- Secure Mating and Vibration Resistance
Featuring an integrated latch system and wedgelocks, these connectors ensure secure contact alignment and reliable locking, even in environments with constant movement and vibration.
Applications of Sealed Connectors in Harsh Environments
The Deutsch DT Series is commonly used in:
- Off-Highway Vehicles
- Agricultural Machinery
- Construction Equipment
- Marine and Boat Electrical Systems
- Heavy-Duty Trucks and Buses
Whether you're searching for IP68 waterproof connectors, automotive electrical connectors, or multi-pin sealed wire connectors, the Deutsch DT Series offers trusted performance in the most rugged conditions.
Packing List: 10/40/CTN/7.8/8.8/KGS/1.8'
PP Box
Blow Case Size: 17.5 x 13 x 4 cm
Unit Weight: 194.5g
