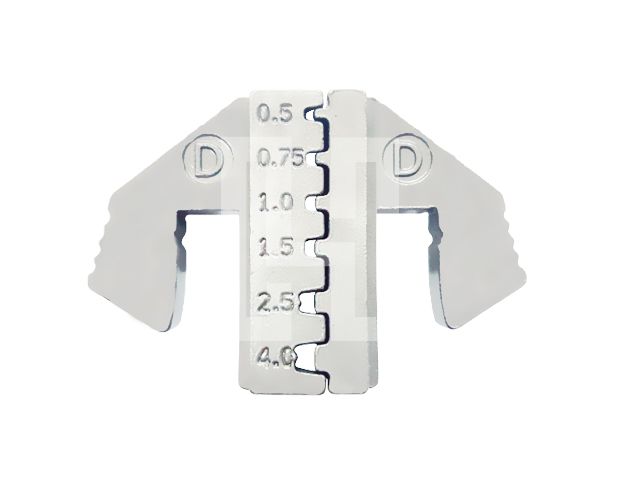

J12JD Jaw for Ferrule Terminals and Insulated Cable End

Item No. : J12JD Quick Change Crimping Jaw for Ferrule Terminals and Insulated Cable End - DIN 0.5/0.75/1.0/1.5/2.5/4.0 mm²

Suitable for
● AWG 20/18/17/16/14/12

● DIN 0.5/0.75/1.0/1.5/2.5/4.0 mm²

Confined crimp :Trapezoid-Crimp & WM-Crimp

Applicable: Terminal Block/Control Panel

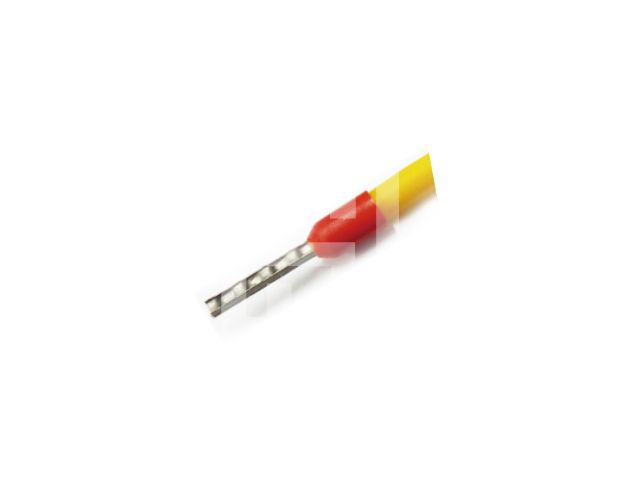

DESIGNED FOR FERRULE TERMINALS - This crimping jaw will make clean trapezoid shaped crimps for ferrule wire ends 20-12 AWG.
These jaws are not compatible with the fixed jaw crimping tools.

Compatible with LiCrim Quick Change crimper frames system as below:

●Made in TAIWAN-More LiCrim Crimper Single Function : Please Press the button "Download" to get it.

Material: AISI- 4140
Procedure: Precision and Wax-lost Casting
Treatment: Finished with heat treatment
Surface treatment : Zinc Phosphate

AISI 4140 is a chromium-molybdenum alloy steel. The chromium content provides good hardness penetration, and the molybdenum content ensures uniform hardness and high strength. The jaws are heat treated and have a zinc phosphate surface treatment
Designed by Germany, Made in Taiwan.

COMPATIBILITY - Individual crimping jaws will work with our crimping tools with quick change locking mechanism.
No tools required. The jaws can be replaced in 5 seconds. Slide in, slide out. Patented in USA, Germany, China, Taiwan

Packing List:  120/240/CTN/18.4/19.4/KGS/1.2'
Sliding Card
Sliding Card Size: 11.3 x 8.3 x 1.5 cm
Unit Weight:  76.6g
