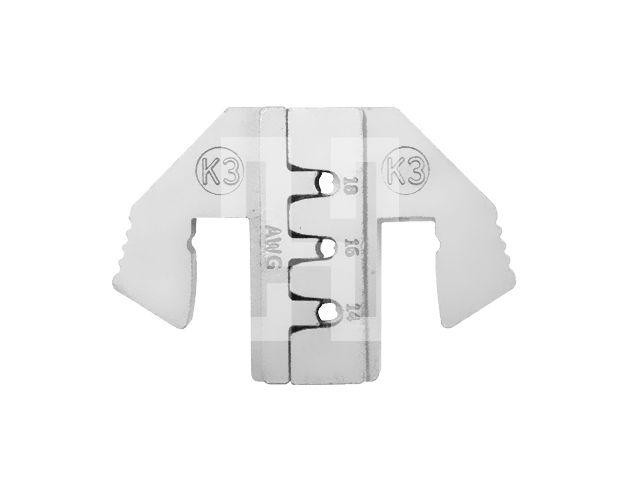

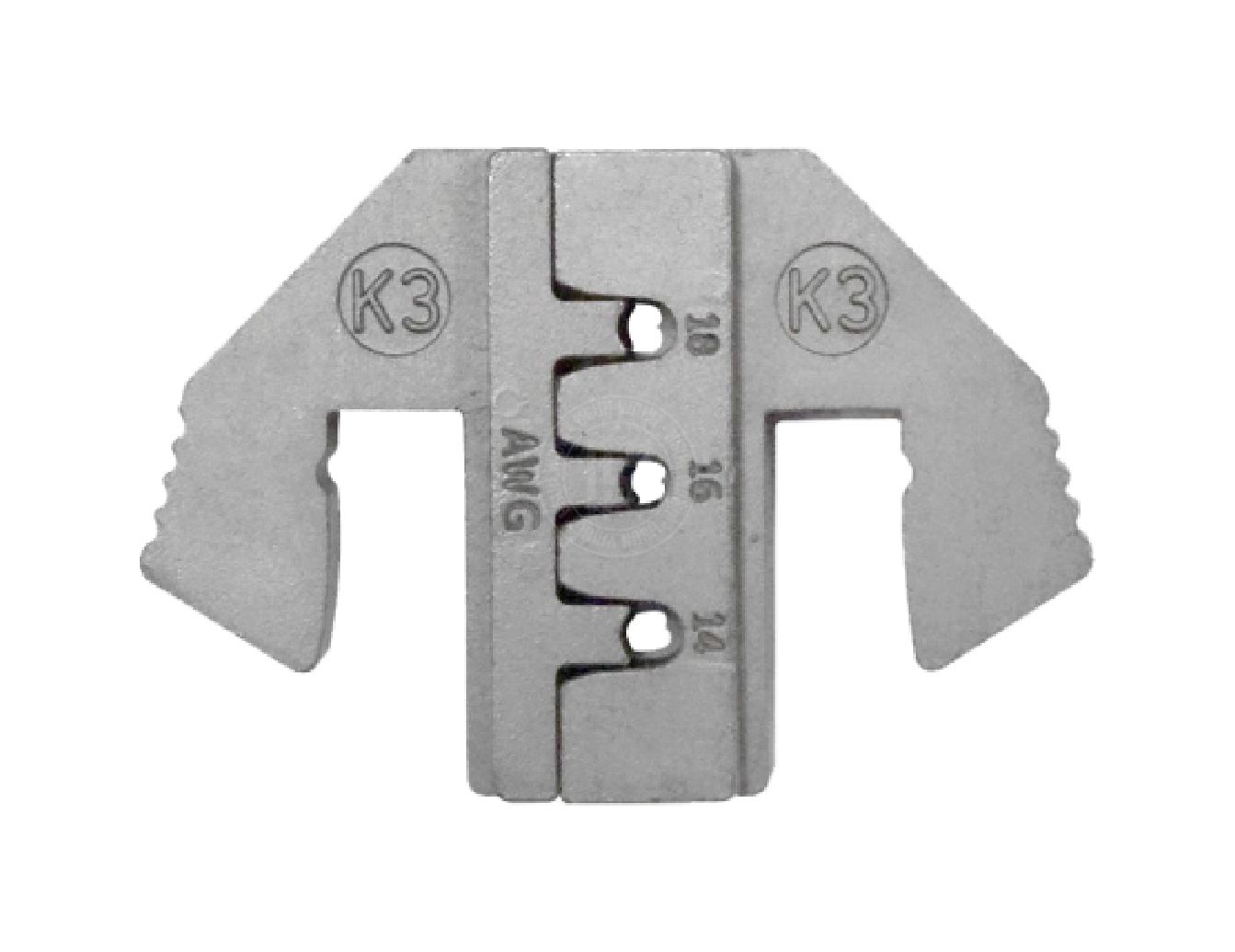

Jaw for Deutsch Contact DT (Stamped & Formed) / Item No. : J12JK3

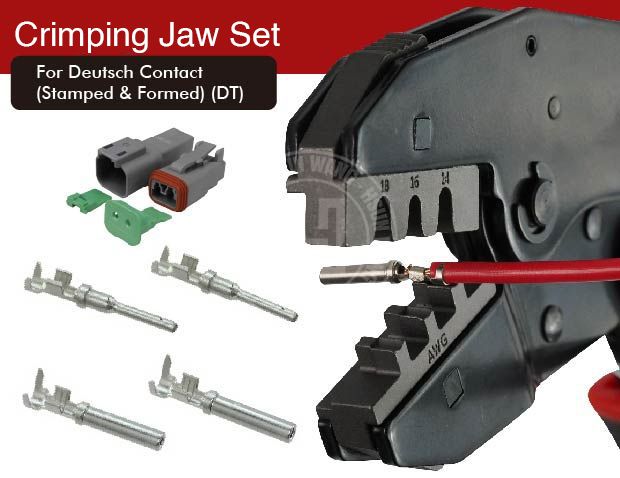

Item No. : J12JK3 Quick Change Crimping Jaw for TE Deutsch Contact(Stamped & Formed) (DT) AWG 18/16/14

Suitable for

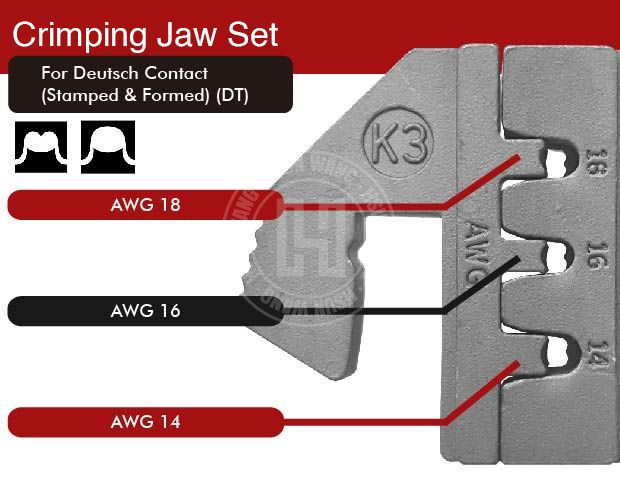

● AWG 18/16/14

●For DT

Confined crimp For B Crimp(F Crimp) / Overlap crimp.The jaw structure is precise to ensure firmly grasps the wires after crimping .
contact size 16

Applicable: Heavy Duty, Transportation, Marine, Diagnostic, Military, Alternative Energy and Agricultural

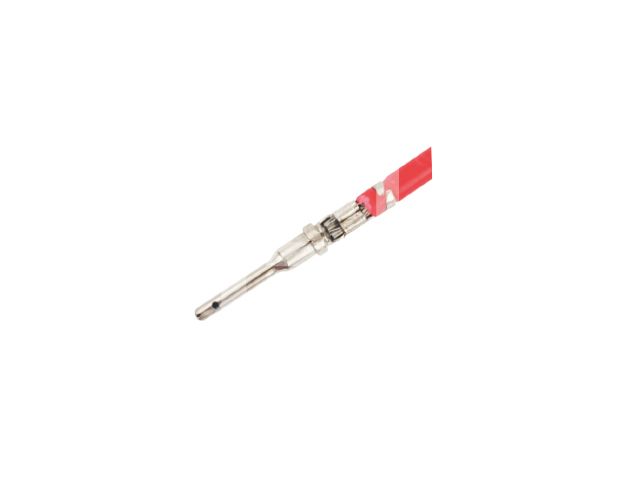

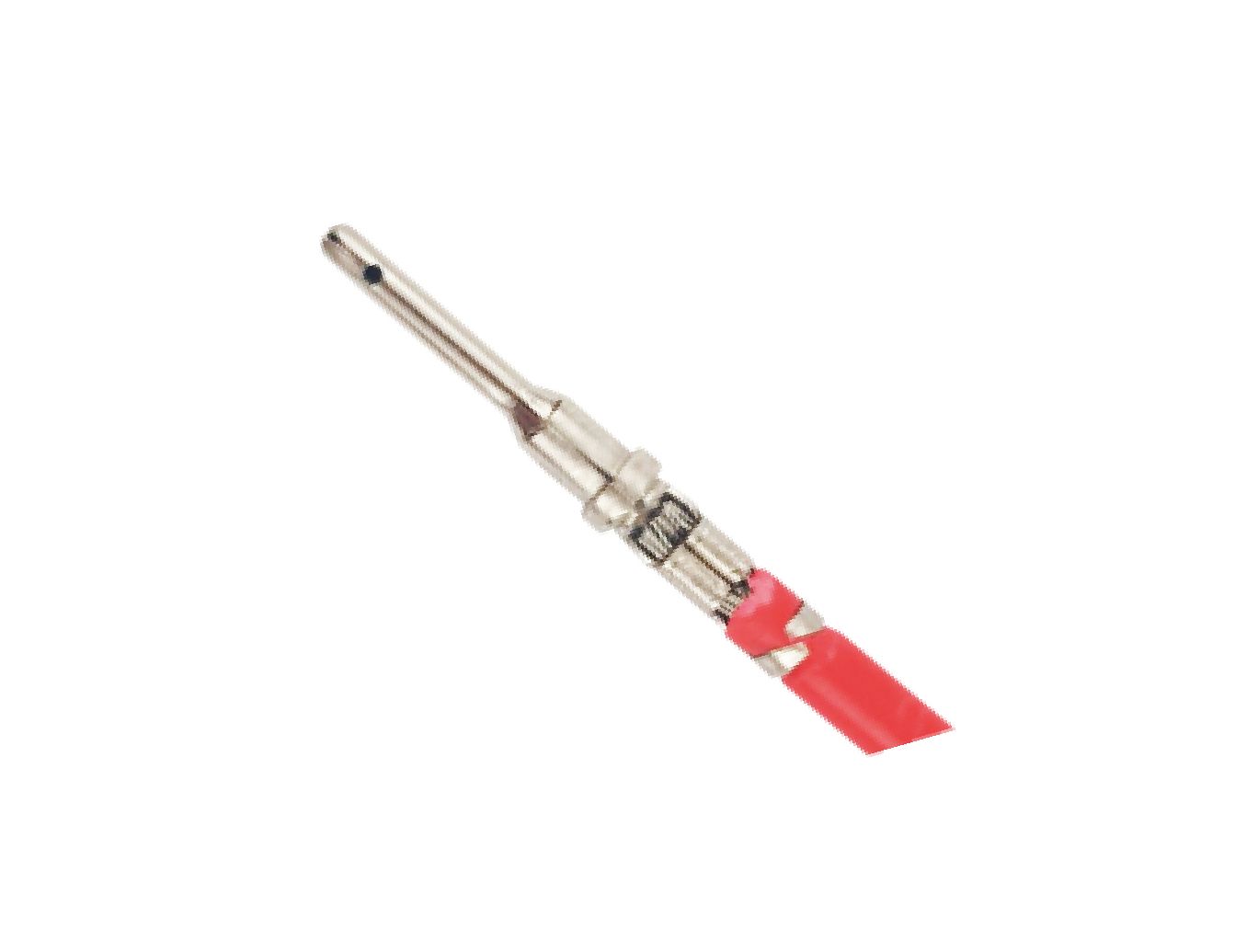

For Deutsch Stamped & Formed type Disconnector (AEC,DRB,DRC,DT,DTV,HD10,HD30,HDP20 Series Connector)
These jaws are not compatible with the fixed jaw crimping tools.

Compatible with LiCrim Quick Change crimper frames system as below:

• 9 plus Quick Change Ratchet Crimper JD series (Tools Only or With Contacts )
• 8.7" Quick Change Ratchet Crimper JB series (Tools Only or With Contacts )
• 10" Quick Change Ratchet Crimper JE series (Tools Only or With Contacts )
• 8.7" Light Quick Change Ratchet Crimper JC series (Tools Only or With Contacts )
• 9" Professional Parallel Ratchet Crimper / Item No.: JFP

Made in TAIWAN-More LiCrim Crimper Single Function : Please Press the button "Download" to get it.

Material: AISI- 4140
Procedure: Precision and Wax-lost Casting
Treatment: Finished with heat treatment
Surface treatment : Zinc Phosphate

AISI 4140 is a chromium-molybdenum alloy steel. The chromium content provides good hardness penetration, and the molybdenum content ensures uniform hardness and high strength. The jaws are heat treated and have a zinc phosphate surface treatment.Designed by Germany, Made in Taiwan.

COMPATIBILITY - Individual crimping jaws will work with our crimping tools with quick change locking mechanism.
No tools required. The jaws can be replaced in 5 seconds. Slide in, slide out. Patented in USA, Germany, China, Taiwan

J12JK Series Quick Change Crimping Jaw for TE Deutsch Contact

Packing List:  120/240/CTN/15.7/16.7/KGS/1.2'
                         Sliding Card

Sliding Card Size: 11.3 x 8.3 x 1.5 cm

Unit Weight:  65.6g
