Jaw for JPT Receptacle Contact / Item No. :J12JL

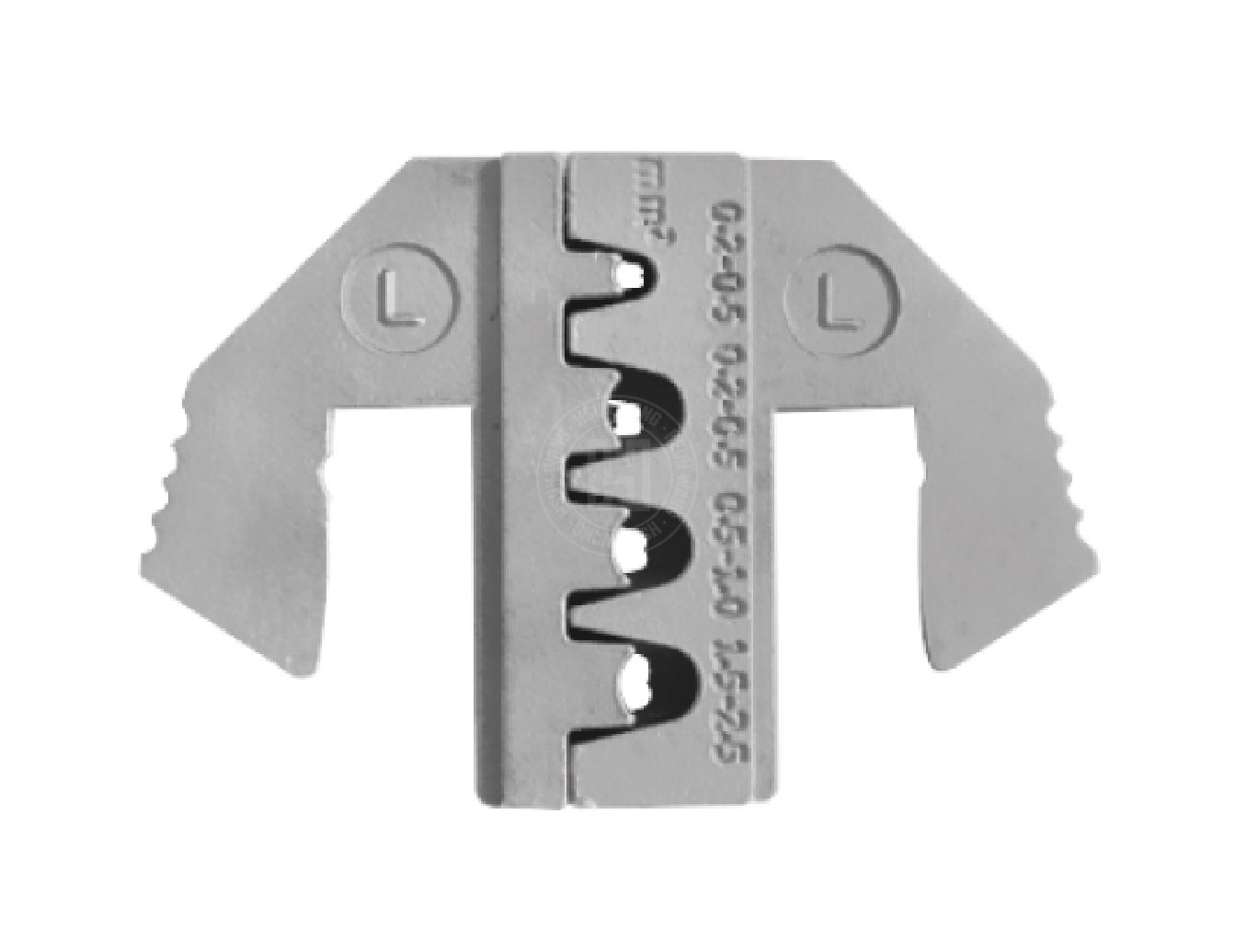

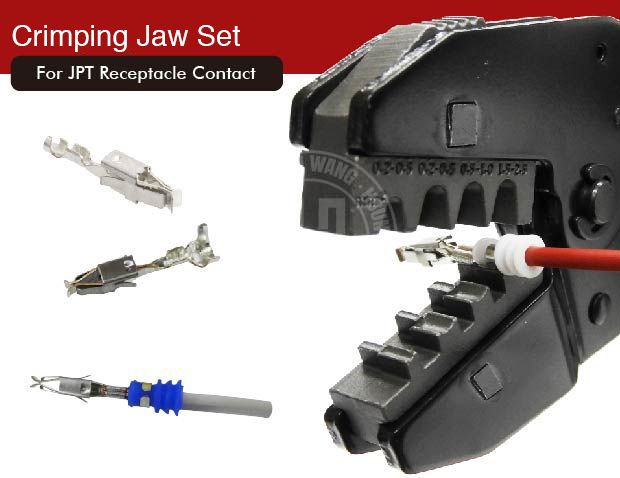

Item No. :J12JL   Quick Change Crimping Jaw for TE JPT Receptacle Contact - AWG 24-13

Suitable for
● AWG 24-13

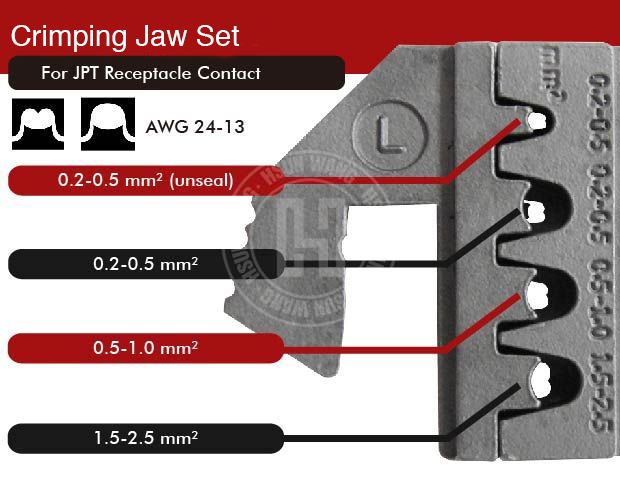

● DIN 0.2-0.5/0.2-0.5/0.5-1.0/1.5-2.5 mm²

Confined crimp For B Crimp(F Crimp) .The jaw structure is precise to ensure firmly grasps the wires after crimping .

Applicable: AUTO

JPT: Junior Power Timer

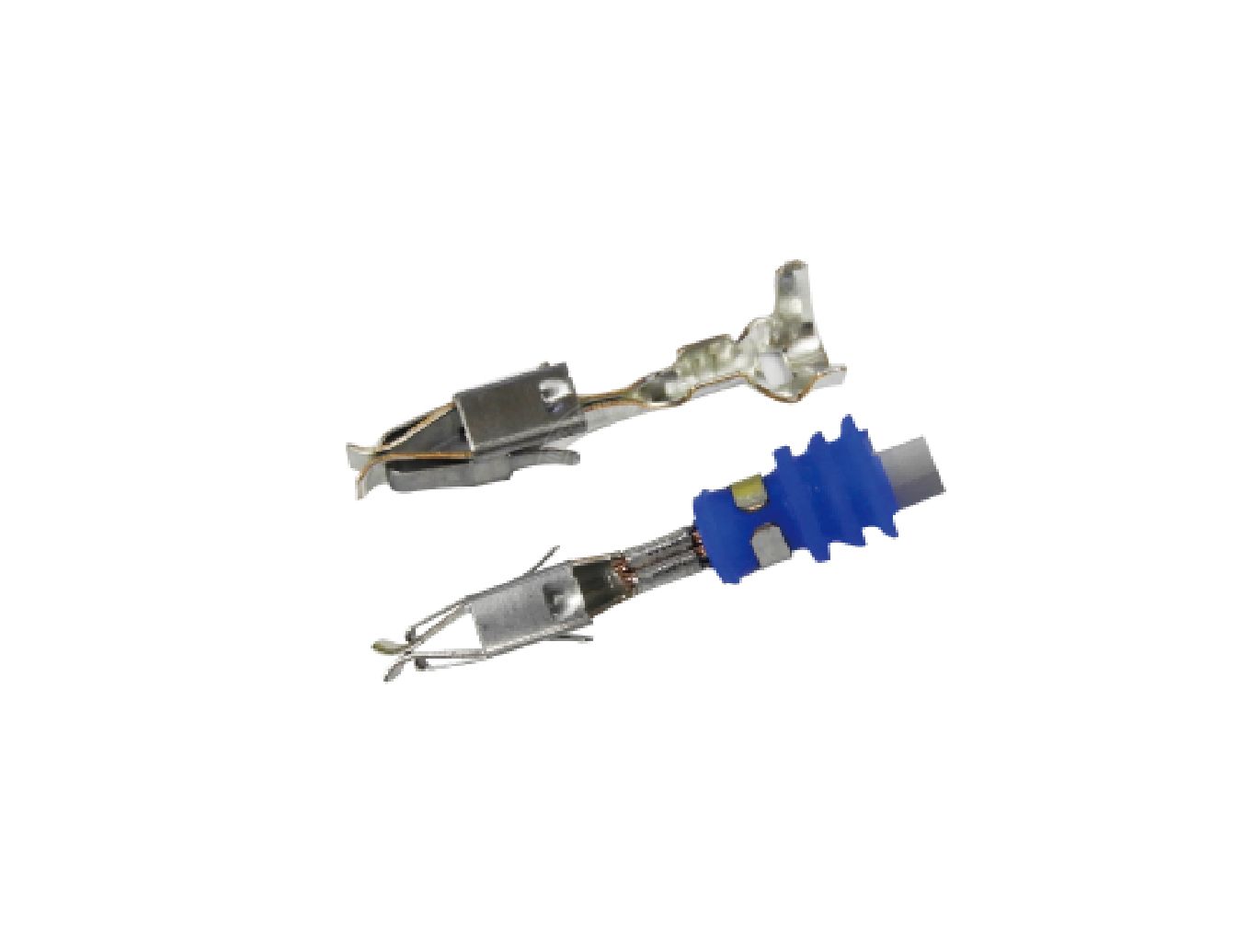

For TE JPT receptacle contact

Compatible with LiCrim Quick Change crimper frames system as below:

• 9 plus Quick Change Ratchet Crimper JD series (Tools Only or With Contacts )
• 8.7" Quick Change Ratchet Crimper JB series (Tools Only or With Contacts )
• 10" Quick Change Ratchet Crimper JE series (Tools Only or With Contacts )
• 8.7" Light Quick Change Ratchet Crimper JC series (Tools Only or With Contacts )
• 9" Professional Parallel Ratchet Crimper / Item No.: JFP

●Made in TAIWAN-More LiCrim Crimper Single Function : Please Press the button "Download" to get it.

Material: AISI- 4140
Procedure: Precision and Wax-lost Casting
Treatment: Finished with heat treatment
Surface treatment : Zinc Phosphate

AISI 4140 is a chromium-molybdenum alloy steel. The chromium content provides good hardness penetration, and the molybdenum content ensures uniform hardness and high strength. The jaws are heat treated and have a zinc phosphate surface treatment
Designed by Germany, Made in Taiwan. These jaws are not compatible with the fixed die crimping tools.
COMPATIBILITY - Individual crimping jaws will work with our crimping tools with quick change locking mechanism.
No tools required. The jaws can be replaced in 5 seconds. Slide in, slide out. Patented in USA, Germany, China, Taiwan

Packing List:  120/240/CTN/15.4/16.4/KGS/1.2'
                         Sliding Card
Sliding Card Size: 11.3 x 8.3 x 1.5 cm
Unit Weight:  64.1g
