For Yazaki Contacts
Product Introduction

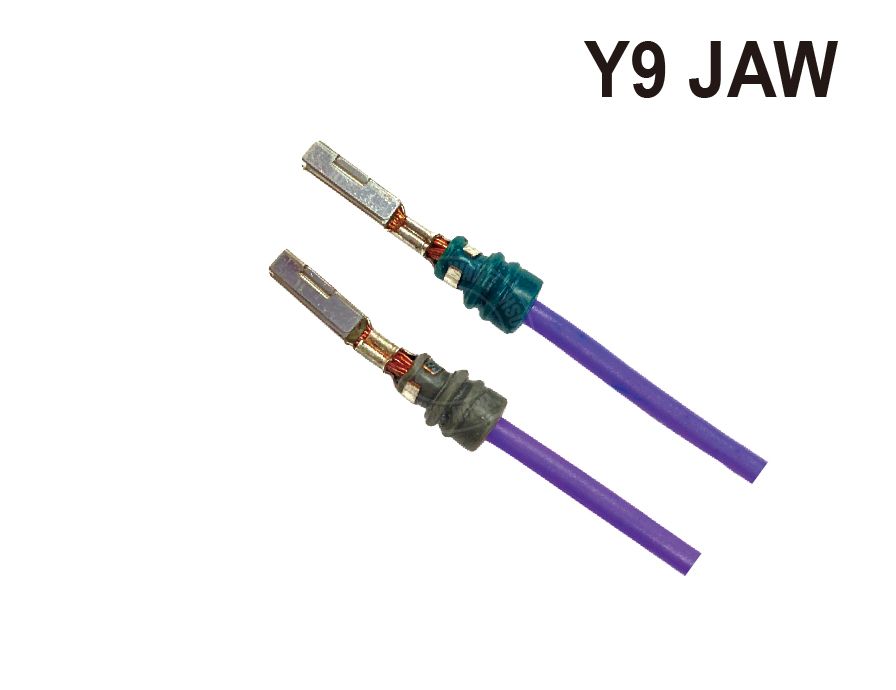

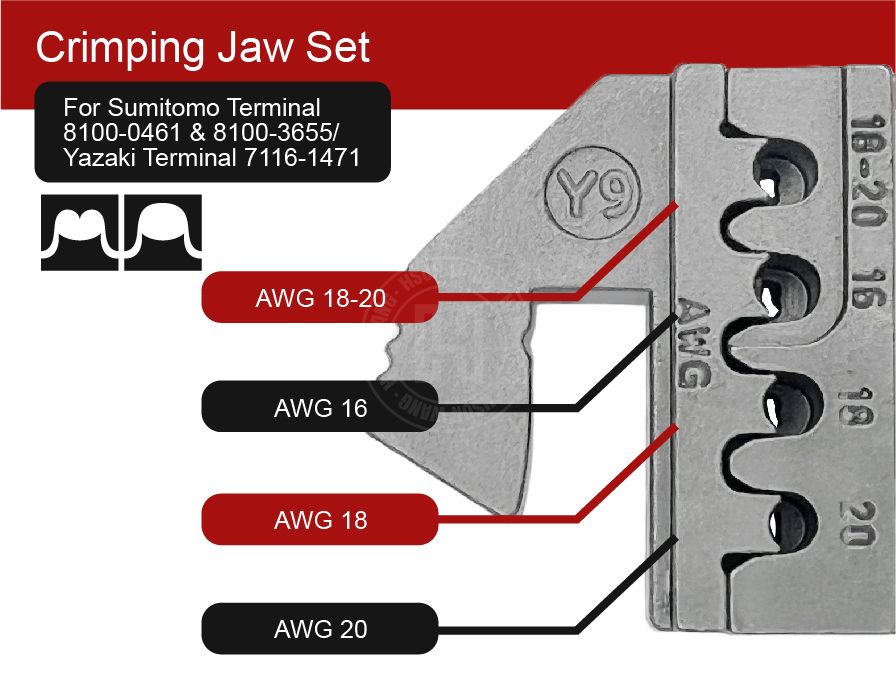

Item No.: J12JY9 Jaw for Sumitomo Terminal 8100-0461/8100-3655 & Yazaki Terminal 7116-1471
Suitable for
● AWG 18-20/16/18/20
Confined crimp For B Crimp(F Crimp) .The jaw structure is precise to ensure firmly grasps the wires after crimping .
Applicable: AUTO
Compatible with LiCrim Quick Change crimper frames system as below:
- 9 plus Quick Change Ratchet Crimper JD series (Tools Only or With Contacts )
- 8.7" Quick Change Ratchet Crimper JB series (Tools Only or With Contacts )
- 10" Quick Change Ratchet Crimper JE series (Tools Only or With Contacts )
- 8.7" Light Quick Change Ratchet Crimper JC series (Tools Only or With Contacts )
- 9" Professional Parallel Ratchet Crimper / Item No.: JFP
●Made in TAIWAN-More LiCrim Crimper Single Function : Please Press the button "Download" to get it.
Material: AISI- 4140
Procedure: Precision and Wax-lost Casting
Treatment: Finished with heat treatment
Surface treatment : Zinc Phosphate
AISI 4140 is a chromium-molybdenum alloy steel. The chromium content provides good hardness penetration, and the molybdenum content ensures uniform hardness and high strength. The jaws are heat treated and have a zinc phosphate surface treatment
Designed by Germany, Made in Taiwan.
COMPATIBILITY - Individual crimping jaws will work with our crimping tools with quick change locking mechanism.
No tools required. The jaws can be replaced in 5 seconds. Slide in, slide out. Patented in USA, Germany, China, Taiwan
Packing List: 120/240/CTN/15.5/16.5/KGS/1.2'
Sliding Card
Sliding Card Size: 11.3 x 8.3 x 1.5 cm
Unit Weight: 64.7g
For more information please contact us.
