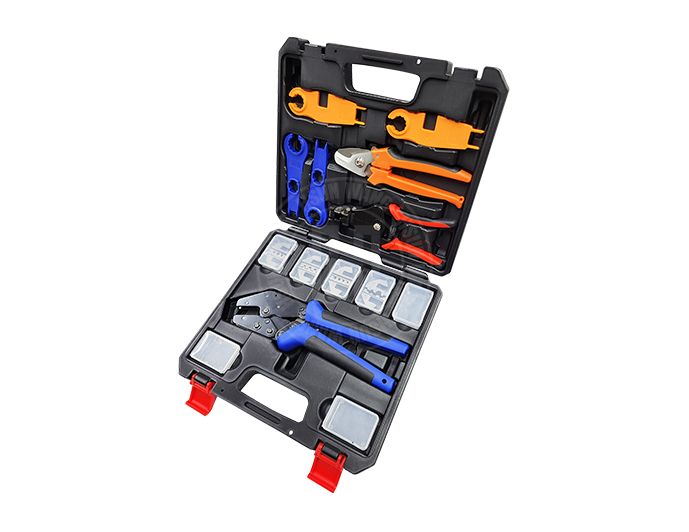

JD18BC18 Solar DC Installation Tool Kit

Item No.: JD18BC18 Solar DC Installation Tool Kit

Jaw for MC3 Solar Connector and Amphenol H4 Plus CF Connector / Item No.: J12JIQ1 ★★
Jaw for MC4 S&F Solar Connector and TE PV4-S S&F Connector / Item No.: J12JIQ2 ★★
Jaw for Tyco SOLARLOK HVT Connector / Item No.: J12JIQ3 ★★
Jaw for Anderson Power SB50/75A Powerpole Connector / Item No.: J12JS2 ★

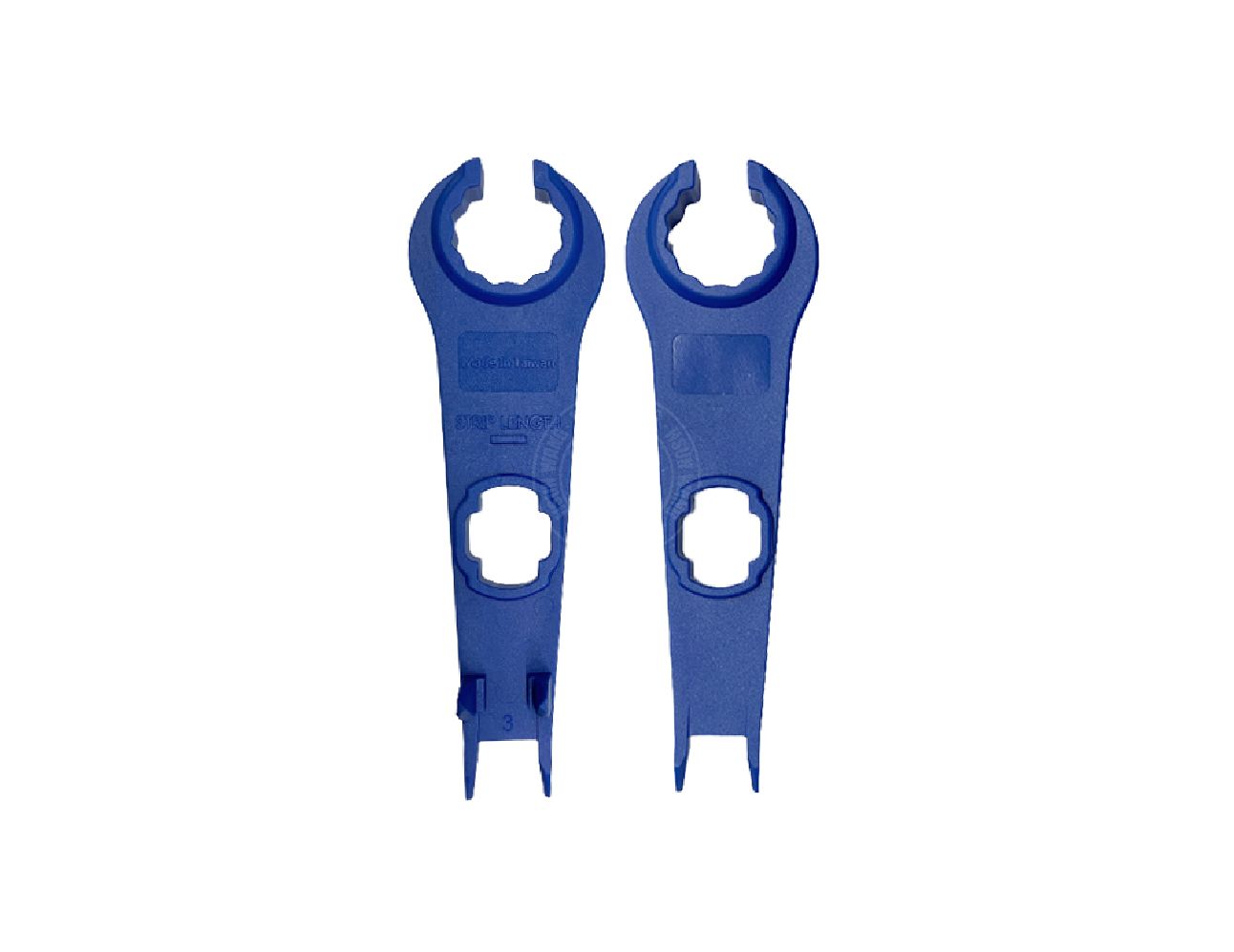

Solar Spanner Tool for Amphenol H4 Plus

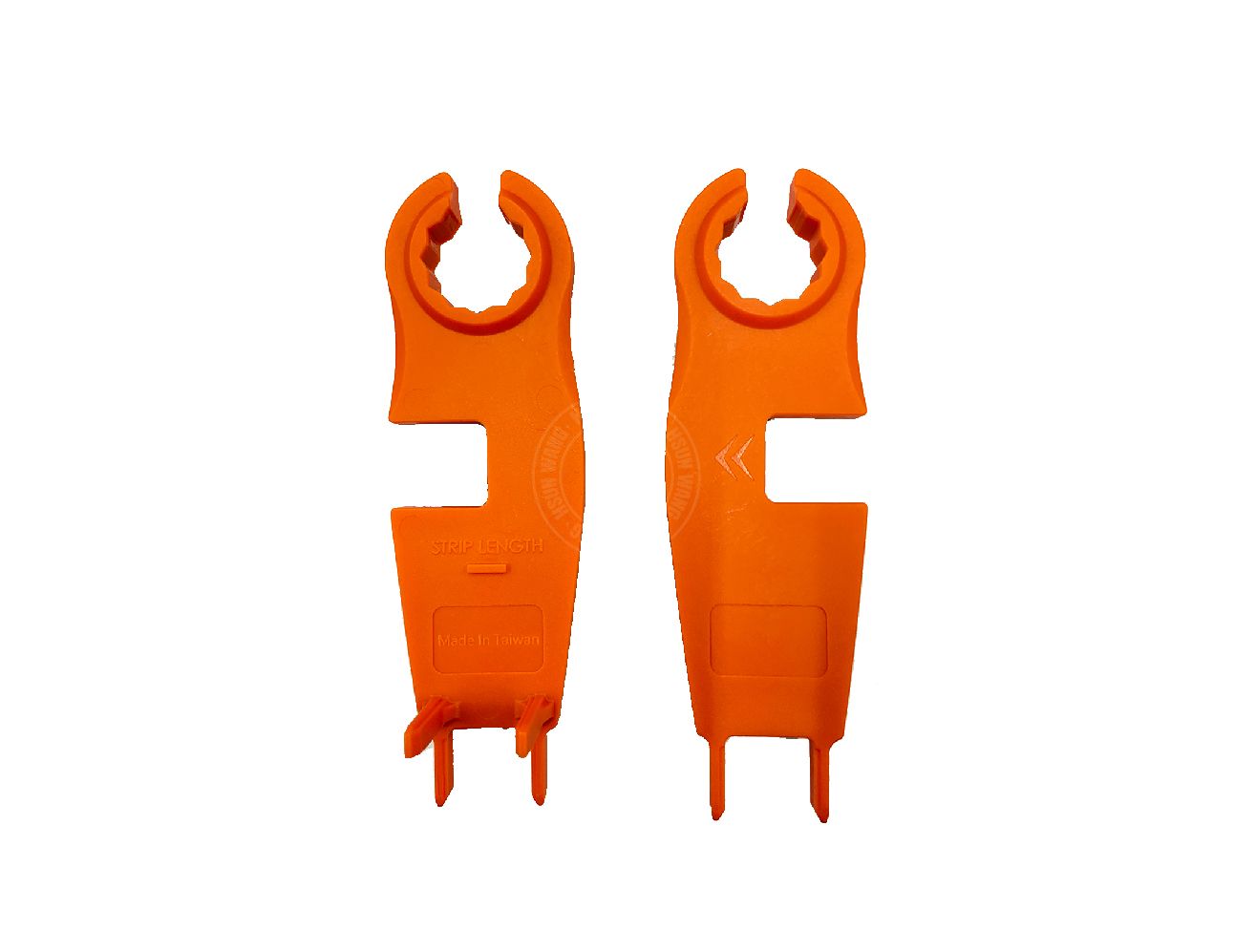

Solar Spanner Tool for Tyco SOLARLOK PV4-S
Solar Cable Stripper / Item No.: P28I
7-1/4" Cable Scissors / Item No: P31I
9" Plus Quick Change Ratchet Crimper / Item No.: JDI
PP Box

The solar DC installation tool kit includes 4 types of jaws IQ1, IQ2, IQ3, and S2 as well as a solar disassembly and removal spanner, a convenient and quick wire stripper and 7-1/4" Cable Scissors.

Applications:

For solar panel connection of household, and solar power station generator, boat, RV and camping.

*A completed tool kit to install solar connectors easily and accurately.

*Cable Cutter with high leverages Jaw and shear blade for clean cut without damage.

*A VERSATILE PACKAGE: This tool kit will work for a variety of situations. An extensive tool kit; any solar installer should keep on hand to install a variety of multi-contact solar connectors in the field.

Jaw:

Material: AISI-4140

Procedure: Metal Injection Molding (MIM)

S2 Jaw Procedure: Precision and Wax-Lost Casting

Treatment: Finished with Heat Treatment

Surface Treatment: Zinc Phosphate

★Designed by Germany. Made in Taiwan.

Solar Spanner Tool:

Material: PA66

Solar Spanner Tool for Amphenol H4 Plus:

Solar Spanner Tool for Tyco SOLARLOK PV4-S:

Handily Crimping - Replace the required crimping jaws just a few seconds. The jaws can be replaced in 5 seconds. Slide in, slide out. Patented in USA, Germany, China, Taiwan.

PROFESSIONAL CRIMPING TOOL - precisely calibrated hand crimper tool delivers proper crimps for any terminal type and size.

Quick release lever frees the crimper jaws in any position and when crimp is complete, acts as a built-in safety measure that can open the handles whenever tool is jammed or stuck.

EFFICIENT RATCHETING MECHANISM - This crimper will release automatically, applying the same amount of crimping force every time. Ratcheting action allows for precise, repeatable crimps and prevents over crimping that would damage wire and terminal. It's easy to secure the wire connector in the jaws before insert the stripped wire.

Adjustable Compression Wheel - Adjustable clamping force coupled with ratcheting mechanism enables precise, repeatable crimps. Compression wheel can be adjusted by removing screw. Twist left to tighten and right to loosen. Adjustable crimp height of star wheel,to ensure the right amount of crimping force. The star wheel to adjust the crimping force with (+) and (-) indicators. The minus (-) direction provides less crimping force, while the plus (+) direction increases the crimping force.

ERGONOMIC HANDLES - These enlarged, non-slippery handles were designed to ensure strong and comfortable grip in any condition. No tools required. These jaws are not compatible with the fixed jaw crimping tools.

Packing List: 10/CTN/19.3/20.3/KGS/2'

Blow Case and Color Sleeve

Blow Case Size: 28.3 x 26.1 x 6.8 cm

Unit Weight: 1.93 kgs

For more information please contact us.
