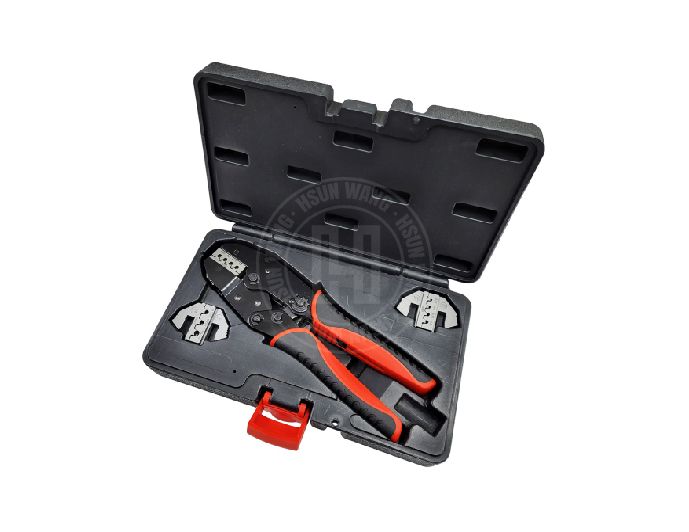

Y/Y1/Y2 Yazaki Series Terminal Tool Set / Item No. : JBBB28

Tools Only

Y/Y1/Y2 Yazaki Series Terminal Tool Set / Item No. : JBBB28

Interchangeable jaws for Yazaki YES/YESC 1.5 & 2.8 terminals, compatible with both sealed and unsealed types. Designed for precise B/F crimping and secure wire hold.
Works with the 8.7” Quick-Change Ratchet Crimper for fast and efficient jaw swaps.

Product Introduction

Item No.: JBBB28   Y/Y1/Y2 Yazaki Series Terminal Tool Set



Interchangeable Jaws for Yazaki YES/YESC Terminals

A professional-grade crimping solution tailored for Yazaki YES/YESC 1.5 and 2.8 series terminals, both sealed and unsealed. These precision-engineered interchangeable jaws are designed for confined crimping (B/F crimp), ensuring firm wire retention and consistent performance in every application.

Paired with the 8.7” Quick-Change Ratchet Crimper, you can effortlessly swap jaws to match your terminal needs, making your workflow faster, more efficient, and highly reliable.

Jaw Compatibility:

  • Jaw Y – For YES/YESC 1.5 Sealed Terminals
    AWG 22/20/18/16 | DIN 0.35/0.5/0.75/1.0 mm²

  • Jaw Y1 – For YES/YESC 1.5 Unsealed Terminals
    AWG 22/20/18/16 | DIN 0.35/0.5/0.75/1.0 mm²

  • Jaw Y2 – For YES/YESC 2.8 Sealed Terminals
    AWG 22–20 / 18–16 / 14 | DIN 0.3–0.5 / 0.75–1.0 / 1.5–2.5 mm²

Applicable: AUTO



●Handily Crimping - Replace the required crimping jaws just a few seconds. The jaws can be replaced in 5 seconds. Slide in, slide out. Patented in USA, Germany, China, Taiwan.

●PROFESSIONAL CRIMPING TOOL - precisely calibrated hand crimper tool delivers proper crimps for any terminal type and size.

●Quick release lever frees the crimper jaws in any position and when crimp is complete, acts as a built-in safety measure that can open the handles whenever tool is jammed or stuck.

●EFFICIENT RATCHETING MECHANISM - This crimper will release automatically, applying the same amount of crimping force every time. Ratcheting action allows for precise, repeatable crimps and prevents over crimping that would damage wire and terminal. It's easy to secure the wire connector in the jaws before insert the stripped wire.

Adjustable Compression Wheel - Adjustable clamping force coupled with ratcheting mechanism enables precise, repeatable crimps. Compression wheel can be adjusted by removing screw. Twist left to tighten and right to loosen. Adjustable crimp height of star wheel, to ensure the right amount of crimping force. The star wheel to adjust the crimping force with (+) and (-) indicators. The minus (-) direction provides less crimping force, while the plus (+) direction increases the crimping force.

●ERGONOMIC HANDLES - These enlarged, non-slippery handles were designed to ensure strong and comfortable grip in any condition. No tools required. These jaws are not compatible with the fixed jaw crimping tools.



Made in TAIWAN-More LiCrim Crimper Single Function : Please Press the button "Download" to get it.



Material: AISI- 4140

Procedure: Precision and Wax-lost Casting

Treatment: Finished with heat treatment

Surface treatment: Zinc Phosphate



AISI 4140 is a chromium-molybdenum alloy steel. The chromium content provides good hardness penetration, and the molybdenum content ensures uniform hardness and high strength. The jaws are heat treated and have a zinc phosphate surface treatment.

Designed by Germany, Made in Taiwan.



Quick Change Ratchet Crimper:

Material:

Body: Carbon Steel

Handle: PP+TPR (PAHs Approved)





Packing List: 20/CTN/19.2/20.2/KGS/1.7'

                Blow Case and Color Sleeve

Blow Case Size: 24.5 x 15.2 x 5.3cm

Unit Weight: 0.96 kgs



For more information please contact us.
